Creating Colour Art from Line Art

T-RIG-005-000B

Lets you use the outline you traced on one of the four embedded layers (line art, colour art, overlay, underlay) and create invisible strokes to paint your drawings on separate layers. This provides more inking and painting flexibility.

You can also configure this option to create the invisible strokes on any of the four embedded layers.

How to create Colour Art zones from the Line Art layer
  1. In the Tools toolbar, select the Select tool or press Alt + S.
  1. In the Tool Properties view, click the Permanent Selection button if you want to apply the operation on all drawings in the layer.
  1. In the Camera or Drawing view, select the artwork to transfer to the Colour Art. Create a selection around the entire animation sequence if you want to apply the operation to all your drawings.
  2. In the Drawing View toolbar, click the Create Colour Art from Line Art button or press *.

How to create strokes with the Create Colour Art Automatically option
  1. In the Tools toolbar, select the Brush tool.
  2. In the Tool Properties view, enable the Create Colour Art Automatically option.
  1. Draw the required lines.
  1. Once you're done, deselect the Create Colour Art Automatically option.

You are now ready to paint.

How to configure the Create Colour Art from Line Art option
  1. In the Tools toolbar, select the Select tool or press Alt + S.
  1. In the Tool Properties view or the Drawing View toolbar, Shift + click the Create Colour Art from Line Art button.

The Configure Line Art to Colour Art dialog box opens.

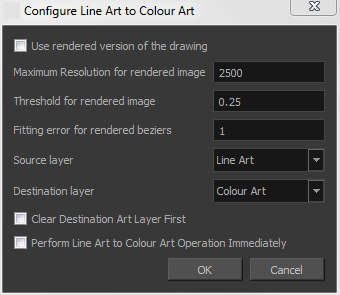

Configure Line Art to Colour Art

Parameter Description
Use rendered version of the drawing Renders the drawing and vectorize it to calculate the position of the centreline that will produce the colour art stroke.
Maximum Resolution for rendered image The size of the rendered image.
Threshold for rendered image The value of grey processed to create the rendered vectorized arts.
Fitting error for rendered Beziers This value represents how precise the fitting of the colour art zone in relation to the line art will be.
Source layer Lets you select the layer (Line Art, Colour Art, Underlay or Overlay) you want the colour art to be created from.
Destination layer Lets you select the layer (Line Art, Colour Art, Underlay or Overlay) you want the colour art to be created on.
Clear Destination Art Layer First

Deletes the content before the colour art is added. This is useful when you already have artwork on the destination layer.
Perform Line Art to Colour Art Operation Immediately Performs the Create Colour Art from Line Art command when you click OK.
