Showing and Hiding Annotation Column Tick Marks
T-ANIMPA-005-007
When working with the annotation columns, it is useful to display tick marks on odd-numbered frames.
To display the tick marks, you must run a short script.
How to display tick marks
- From the top menu, select Windows > Script Editor.
- From the Script Editor menu, select File > New Script.
- Type in a name for your script and click OK.
- In the File list, select the script you created.
- On the right side of the view, type the following script:
function display_tick_marks()
{
preferences.setBool("XSHEET_ANNOTATION_FRAME_MARKER", true);
MessageLog.trace( preferences.getBool("XSHEET_ANNOTATION_FRAME_MARKER", false));
}
- Click Verify.
The script is verified.
- From the Script Editor menu, select Play/Debug > Run.
A dialog box opens with your script selected in the Files column.
- In the Functions column, select display_tick_marks and click OK.

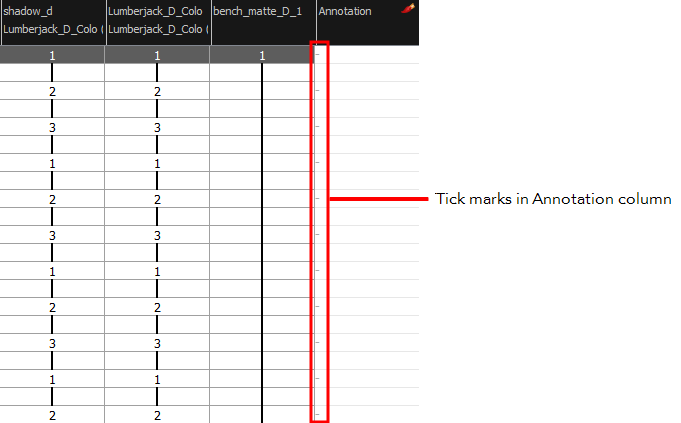

Tick marks appear on odd frames in the Annotation column. If you do not see tick marks, close and restart Harmony.
How to turn off the display of tick marks
- Follow steps 1 to 5 of How to display tick marks and use the following script:
{
preferences.setBool("XSHEET_ANNOTATION_FRAME_MARKER", false);
MessageLog.trace( preferences.getBool("XSHEET_ANNOTATION_FRAME_MARKER", false));
}
- Follow steps 6 to 8.
All tick marks are removed from the Annotation column.
Time Estimated 10 mins
Difficulty Level Intermediate
